Gear Spinner Keychain
3D
Published 2020-08-28T21:15:21+00:00
18
2
Add to Collection
Description

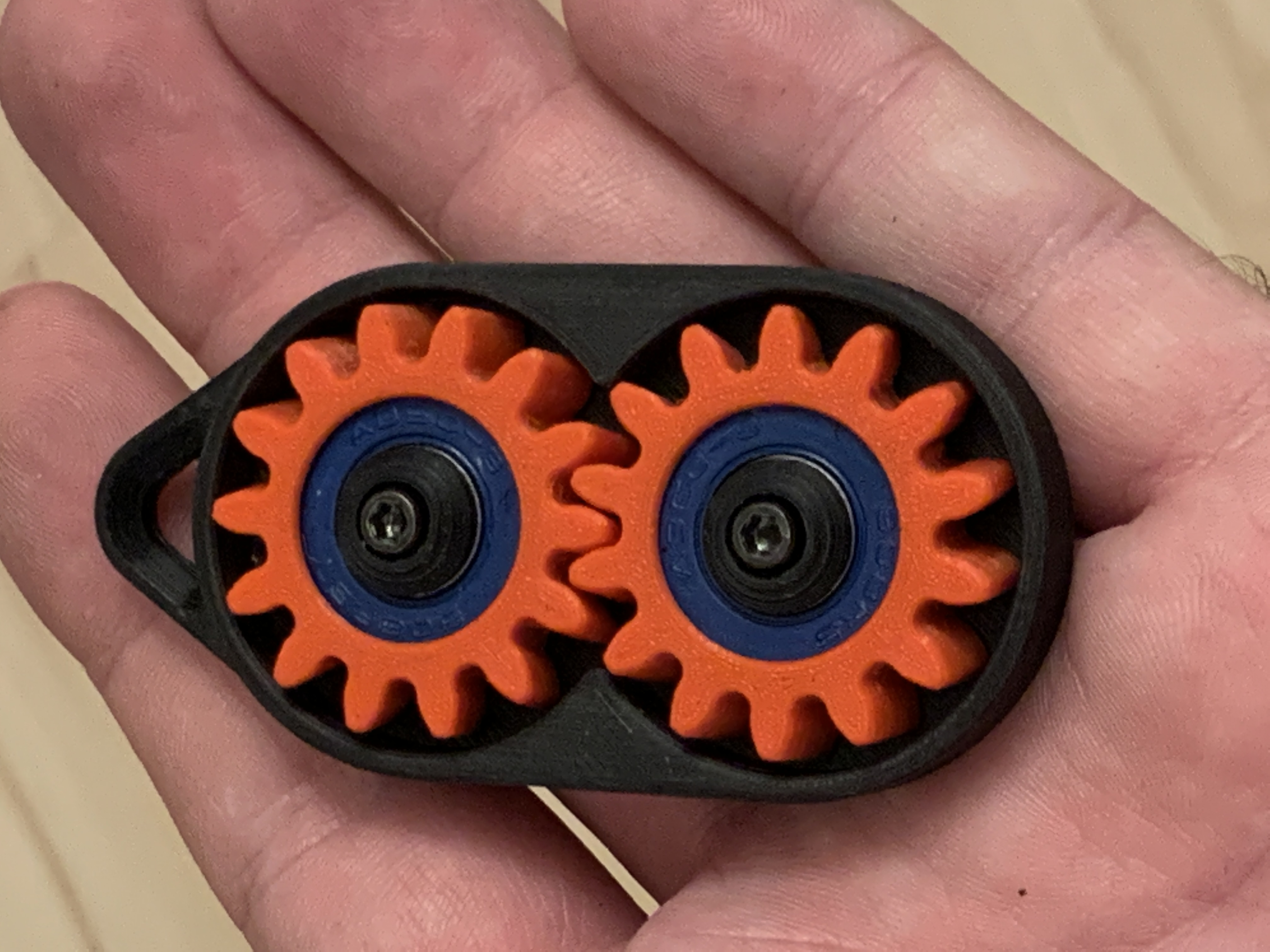

I designed this Gear Keychain in Fusion360 to figure out some basic elements of motion and gear meshing.
You will need to print:
1x Body
1x Spur-Gear 1
1x Spur-Gear 2
2x Washers
In addition to the printed components, you will need:
2x M3x8mm Socket Head Machine Screws
2x M3 Heat Set Insert
2x 8mmx22mmx7mm (skateboard) Bearings
Soon I will be posting several remixes, one without the brass heat set inserts and one without the keychain loop.
License
Printing Details
I printed this in 3D Fuel Pro PLA and Workday PLA on .1mm layer height and 100% infill on my Prusa I3Mk3S. No support is needed anywhere.
Technical Information
Date published | 28/08/2020 |
Time to do | 230 - 231 minutes |
Material Quantity | 16 Grams |
Dimensions | 75mm Long x 38mm Wide x 15mm Tall |
Support Free | YES |
More Information
Object Parts

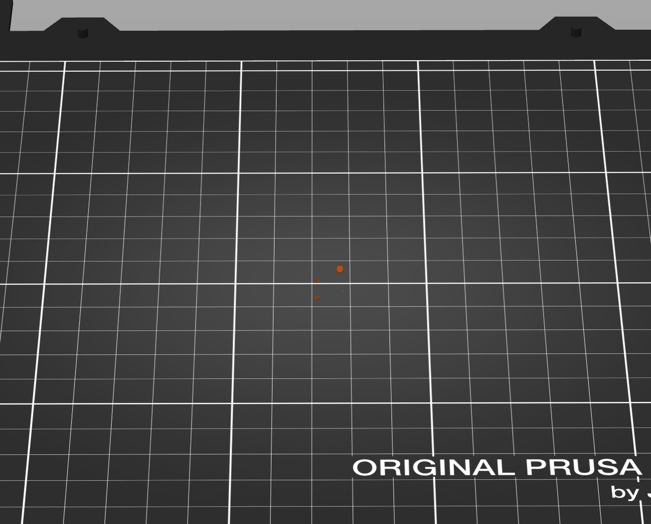

The .stl Files seems to have a Problem with its Size. They appear pretty small in Prusa Slicer. Edit: Scaling up to 2540 works (Imperial to Metric)
